rustdesk
This tutorial is for Debian users who want to create a self-hosted RustDesk instance manually. This covers installing the relay server (hbbr), the signaling server (hbbs), and the gohttp server (for client downloads and/or configs). After installing these services, I go through how to setup each systemd unit and, additionally, cover how to drop the gohttp server behind a reverse proxy. This tutorial assumes you have a hardened VM and/or VPS ready with a LAMP stack in place. If not, please head to Apache Survival first. If you are ready to go, let's start by configuring the firewall:
sudo ufw allow 22/tcp sudo ufw allow 80/tcp sudo ufw allow 443/tcp sudo ufw allow 21114:21119/tcp sudo ufw allow 21116/udp sudo ufw enable
Let's now download the latest version of rustdesk, unzip it, and then copy the binaries into the standard location inside /opt/rustdesk:
cd /tmp wget https://github.com/rustdesk/rustdesk-server/releases/download/1.1.14/rustdesk-server-linux-amd64.zip unzip rustdesk-server-linux-amd64.zip sudo mkdir -p /opt/rustdesk /var/log/rustdesk sudo cp amd64/hbbs amd64/hbbr amd64/rustdesk-utils /opt/rustdesk/ sudo chmod +x /opt/rustdesk/hbbs /opt/rustdesk/hbbr /opt/rustdesk/rustdesk-utils
After the relay and signaling servers are installed and copied to the standard locations, we can download and install the gohttp server:
sudo mkdir -p /opt/gohttp /var/log/gohttp cd /tmp wget https://github.com/codeskyblue/gohttpserver/releases/download/1.3.0/gohttpserver_1.3.0_linux_amd64.tar.gz tar -xzf gohttpserver_1.3.0_linux_amd64.tar.gz sudo cp gohttpserver /opt/gohttp/ sudo chmod +x /opt/gohttp/gohttpserver
We can now navigate to our dedicated rustdesk directory and generate our keypair:
cd /opt/rustdesk sudo ./rustdesk-utils genkeypair sudo chmod 600 id_ed25519 cat /opt/rustdesk/id_ed25519.pub
Make a note of the public key somewhere in your secure notes. That's your API key for configuring clients to use your self-hosted relay. We now need to create our systemd units for each of the three services. Let's start with hbbs, or the signaling server. Open up sudo nano /etc/systemd/system/rustdesksignal.service and drop inside:
[Unit] Description=Rustdesk Signal Server [Service] Type=simple LimitNOFILE=1000000 ExecStart=/opt/rustdesk/hbbs -r hackingclub.org:21117 WorkingDirectory=/opt/rustdesk/ User=root Group=root Restart=always StandardOutput=append:/var/log/rustdesk/signalserver.log StandardError=append:/var/log/rustdesk/signalserver.error RestartSec=10 [Install] WantedBy=multi-user.target
Next, let's configure the relay server, or hbbr. To do that, open up sudo nano /etc/systemd/system/rustdeskrelay.service and drop the following inside:
[Unit] Description=Rustdesk Relay Server [Service] Type=simple LimitNOFILE=1000000 ExecStart=/opt/rustdesk/hbbr WorkingDirectory=/opt/rustdesk/ User=root Group=root Restart=always StandardOutput=append:/var/log/rustdesk/relayserver.log StandardError=append:/var/log/rustdesk/relayserver.error RestartSec=10 [Install] WantedBy=multi-user.target
Finally, let's create the systemd unit for the gohttp server. Please note that the unit contains a section to password protect the webroot so only authorized staff can access the client configs in the gohttp server. Adjust that to a secure value. Let's open up sudo nano /etc/systemd/system/gohttpserver.service and drop the following inside:
[Unit] Description=Go HTTP Server [Service] Type=simple LimitNOFILE=1000000 ExecStart=/opt/gohttp/gohttpserver -r ./public --port 8000 --auth-type http --auth-http admin:STRONG_PASSWORD_HERE WorkingDirectory=/opt/gohttp/ User=root Group=root Restart=always StandardOutput=append:/var/log/gohttp/gohttpserver.log StandardError=append:/var/log/gohttp/gohttpserver.error RestartSec=10 [Install] WantedBy=multi-user.target
We can now enable all the units and start the services:
sudo systemctl daemon-reload sudo systemctl enable rustdesksignal rustdeskrelay gohttpserver sudo systemctl start rustdesksignal rustdeskrelay gohttpserver sudo systemctl status rustdesksignal rustdeskrelay gohttpserver
We can now drop the gohttp server behind an apache reverse proxy. To do that, let's install certbot, cut a certificate, and enable the modules. To make things easier for yourself, open up /etc/apache2/sites-enabled/000-default.conf and uncomment and change ServerName to domain.com of your instance. Restart apache sudo systemctl restart apache2 and then do the following:
sudo apt install certbot letsencrypt python3-certbot-apache sudo certbot --authenticator standalone --installer apache -d domain.com --pre-hook "systemctl stop apache2" --post-hook "systemctl start apache2" sudo a2enmod proxy proxy_http proxy_wstunnel rewrite headers ssl
You will now have to enabled vhosts in apache, namely, 000-default.conf and something like 000-default-le-ssl.conf or something similar. These are running stock configurations, not reverse proxies, however. So, now that the certificate is cut, simply swap the contents with some reverse proxy configs instead. For http, use something like:
<VirtualHost *:80> ServerName hackingclub.org ServerSignature Off ProxyPreserveHost On AllowEncodedSlashes NoDecode <Location /> Require all granted ProxyPassReverse http://127.0.0.1:8000 ProxyPassReverse http://hackingclub.org </Location> RewriteEngine on RewriteCond %{DOCUMENT_ROOT}/%{REQUEST_FILENAME} !-f [OR] RewriteCond %{REQUEST_URI} ^/uploads/.* RewriteRule .* http://127.0.0.1:8000%{REQUEST_URI} [P,QSA,NE] ErrorDocument 404 /404.html ErrorDocument 422 /422.html ErrorDocument 500 /500.html ErrorDocument 502 /502.html ErrorDocument 503 /503.html LogFormat "%{X-Forwarded-For}i %l %u %t \"%r\" %>s %b" common_forwarded ErrorLog /var/log/apache2/hackingclub.org_error.log CustomLog /var/log/apache2/hackingclub.org_forwarded.log common_forwarded CustomLog /var/log/apache2/hackingclub.org_access.log combined env=!dontlog CustomLog /var/log/apache2/hackingclub.org.log combined RewriteCond %{SERVER_NAME} =hackingclub.org RewriteRule ^ https://%{SERVER_NAME}%{REQUEST_URI} [END,NE,R=permanent] </VirtualHost>
For the https virtual host, use something like:
<VirtualHost *:443> SSLEngine on SSLProtocol all -SSLv2 SSLHonorCipherOrder on SSLCipherSuite "ECDH+AESGCM:DH+AESGCM:ECDH+AES256:DH+AES256:ECDH+AES128:DH+AES:ECDH+3DES:DH+3DES:RSA+AESGCM:RSA+AES:RSA+3DES:!aNULL:!MD5:!DSS" Header add Strict-Transport-Security: "max-age=15768000;includeSubdomains" SSLCompression Off ServerName hackingclub.org ServerSignature Off ProxyPreserveHost On <FilesMatch ".+\.ph(ar|p|tml)$"> SetHandler "proxy:unix:/run/php/php8.2-fpm.sock|fcgi://localhost" </FilesMatch> AllowEncodedSlashes NoDecode <Location /> Require all granted ProxyPassReverse http://127.0.0.1:8000 ProxyPassReverse http://hackingclub.org </Location> RewriteEngine on RewriteCond %{DOCUMENT_ROOT}/%{REQUEST_FILENAME} !-f [OR] RewriteCond %{REQUEST_URI} ^/uploads/.* RewriteRule .* http://127.0.0.1:8000%{REQUEST_URI} [P,QSA,NE] RequestHeader set X_FORWARDED_PROTO 'https' RequestHeader set X-Forwarded-Ssl on ErrorDocument 404 /404.html ErrorDocument 422 /422.html ErrorDocument 500 /500.html ErrorDocument 502 /502.html ErrorDocument 503 /503.html LogFormat "%{X-Forwarded-For}i %l %u %t \"%r\" %>s %b" common_forwarded ErrorLog /var/log/apache2/hackingclub.org_error.log CustomLog /var/log/apache2/hackingclub.org_forwarded.log common_forwarded CustomLog /var/log/apache2/hackingclub.org_access.log combined env=!dontlog CustomLog /var/log/apache2/hackingclub.org.log combined Include /etc/letsencrypt/options-ssl-apache.conf SSLCertificateFile /etc/letsencrypt/live/hackingclub.org/fullchain.pem SSLCertificateKeyFile /etc/letsencrypt/live/hackingclub.org/privkey.pem </VirtualHost>
Check your configs with apache2ctl configtest and then restart the service sudo systemctl restart apache2. Once everything is working properly, we can now switch to setting up clients. On each RustDesk client, you go to Settings > Network > Unlock and edit the following:
- ID Server: hackingclub.org
- Relay Server: hackingclub.org
- API Server: https://hackingclub.org
- Key: API Key from above

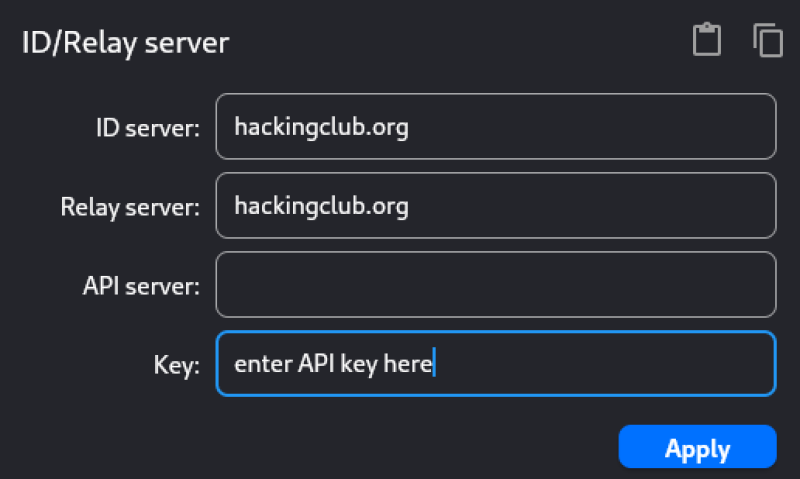

Here's an example of what this section looks like. Note that entering a value in API Server is moot - that's only supported by the premium/paid version. It does not hurt anything to add the value there, however.
Enter the same values on your primary workstation. Once that's done for your workstation and at least one client, you can then specify the ID your “Control Remote Desktop” section and you are all set. Of course, there are many settings inside RustDesk, such as “Always connect via relay” and also how you choose to configure the “Password”, i.e., whether it is permanent or one-time. These are decisions that will be decided by your use-case, as with others, but these are two good areas to look at post-installation. For updates, we do the following:
sudo systemctl stop rustdesksignal rustdeskrelay gohttpserver cd /tmp wget https://github.com/rustdesk/rustdesk-server/releases/download/NEW_VERSION/rustdesk-server-linux-amd64.zip unzip -o rustdesk-server-linux-amd64.zip sudo cp amd64/hbbs amd64/hbbr /opt/rustdesk/ sudo chmod +x /opt/rustdesk/hbbs /opt/rustdesk/hbbr sudo systemctl start rustdesksignal rustdeskrelay gohttpserver sudo systemctl status rustdesksignal rustdeskrelay gohttpserver
That's basically it. The new binaries are executed and controlled by the pre-established systemd units, so you merely replace the binaries and make them executable and you are good to go. If the gohttp server has been updated, similarly:
sudo systemctl stop gohttpserver cd /tmp wget https://github.com/codeskyblue/gohttpserver/releases/download/NEW_VERSION/gohttpserver_NEW_VERSION_linux_amd64.tar.gz tar -xzf gohttpserver_NEW_VERSION_linux_amd64.tar.gz sudo cp gohttpserver /opt/gohttp/ sudo chmod +x /opt/gohttp/gohttpserver sudo systemctl start gohttpserver sudo systemctl status gohttpserver
The password is specified in the systemd unit, which remains unchanged. Just make sure to restart the service as directed above and it will invoke that same value, but on the updated go server. You should now be fully up to date. Hope this helps others wanting to avoid using the automated script / understand all the moving parts of the instance. Happy hacking!
— oemb1905 2026/01/01 18:24
